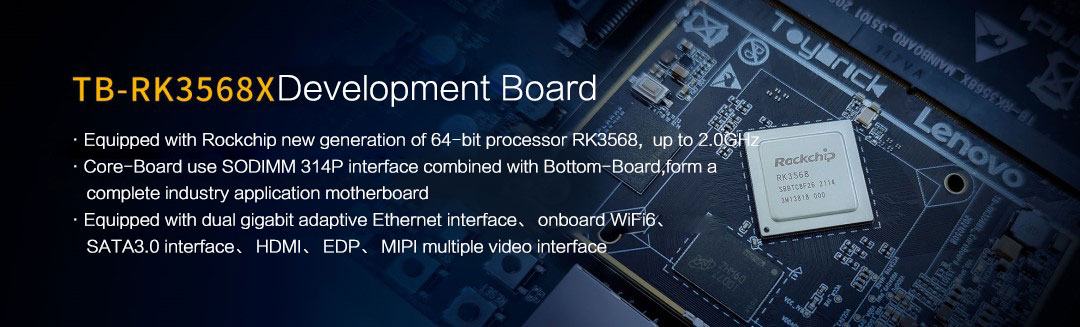

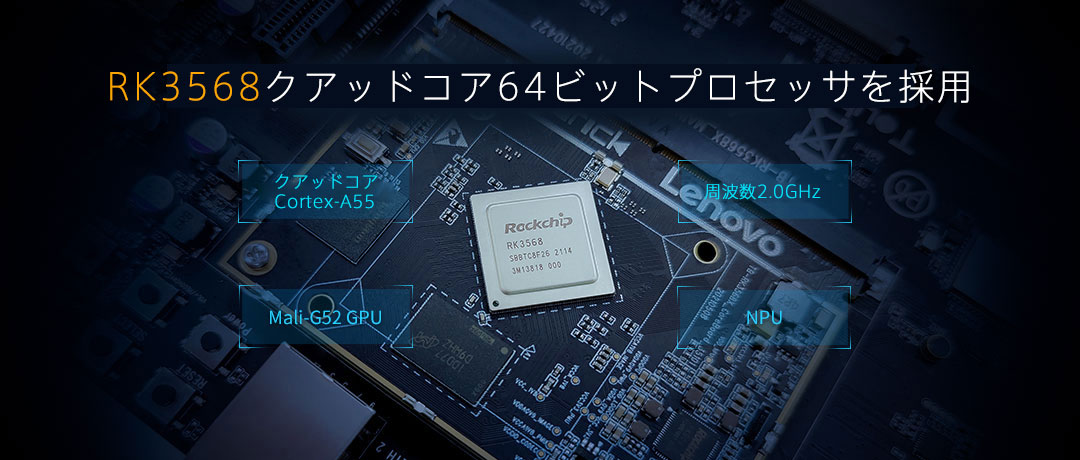

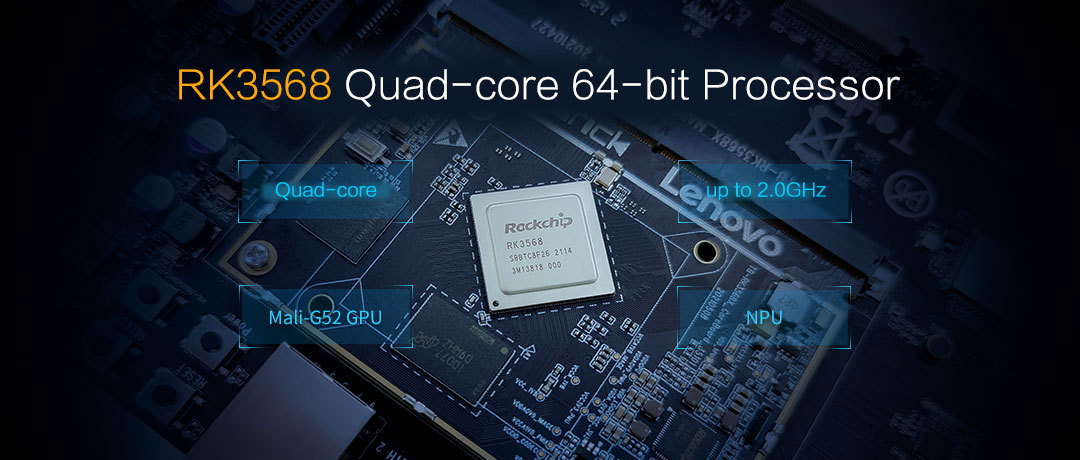

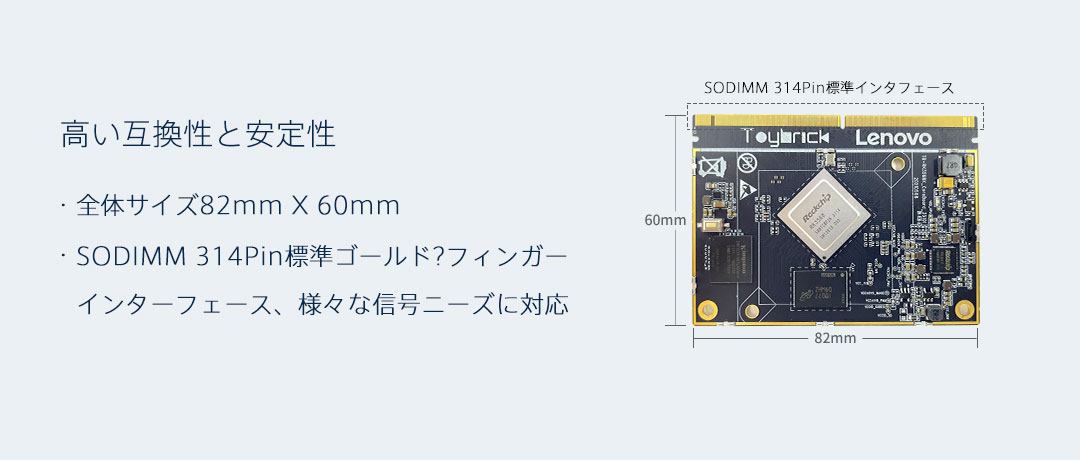

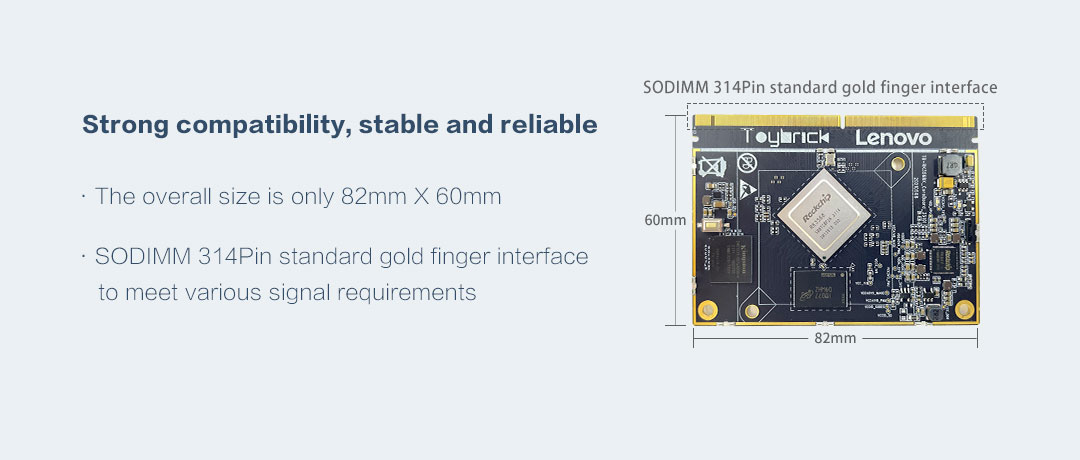

| Core-Board Specification | |
| SOC | RK3568 |
|---|---|
| CPU | Quad-core Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 GPU Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 Embedded high-performance 2D acceleration hardware |
| VPU | Support 4K 60fps H.265/H.264/VP9 video decoding Support 1080P 100fps H.265/H.264 video coding Support 8M ISP，Support HDR |
| NPU | Support 0.8T，Support INT8，INT16，FP16 |
| Storage | 16/32GB |
| DC IN | 12V/2A |
| System | Android、Linux |
| PCB specification | 6 layer |
| PCB size | 82mm×60mm |

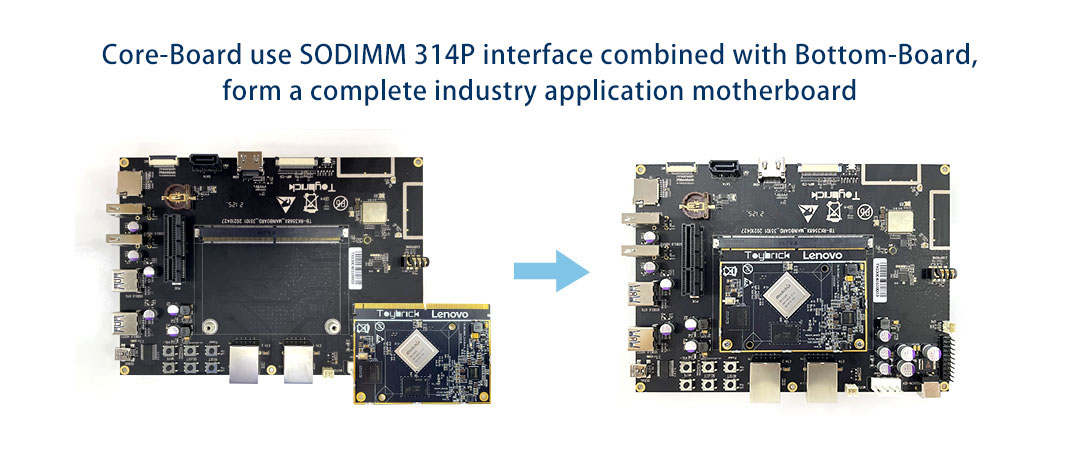

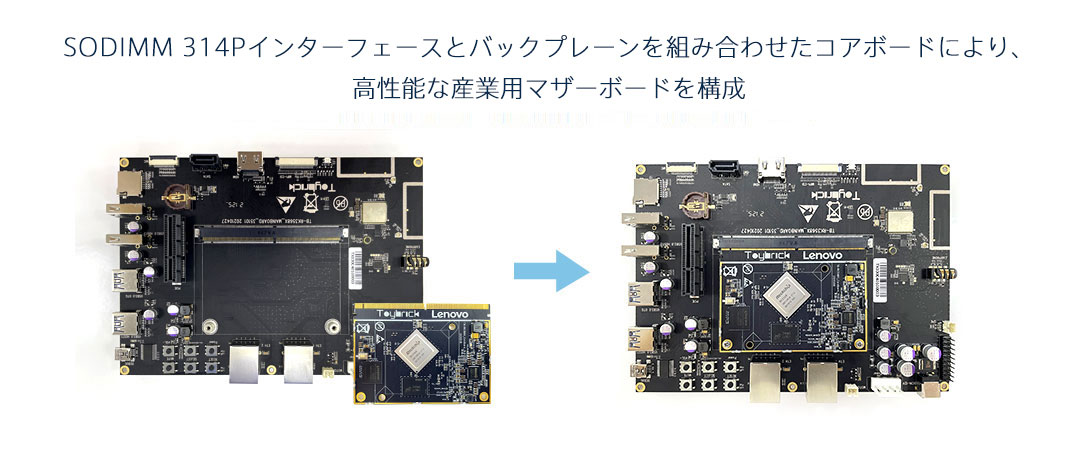

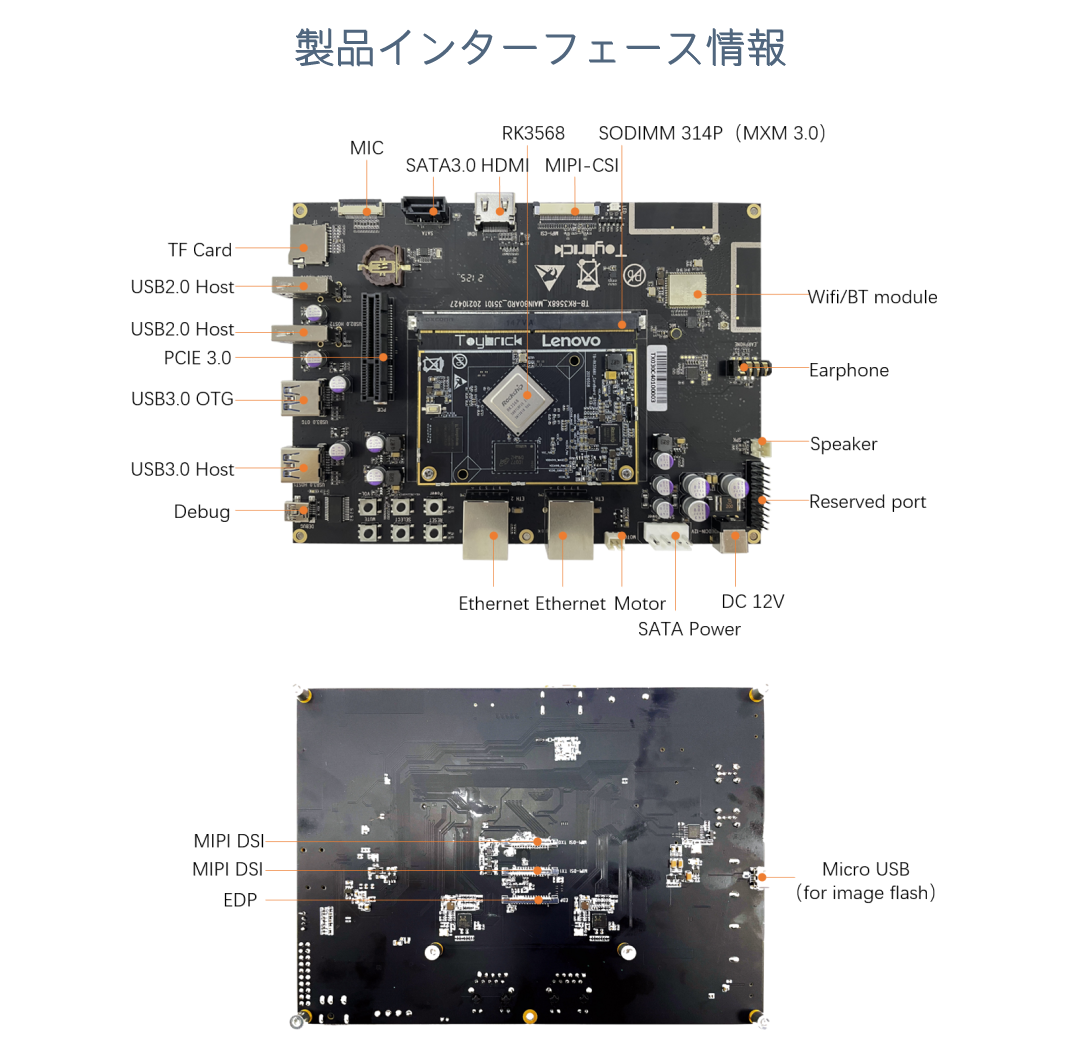

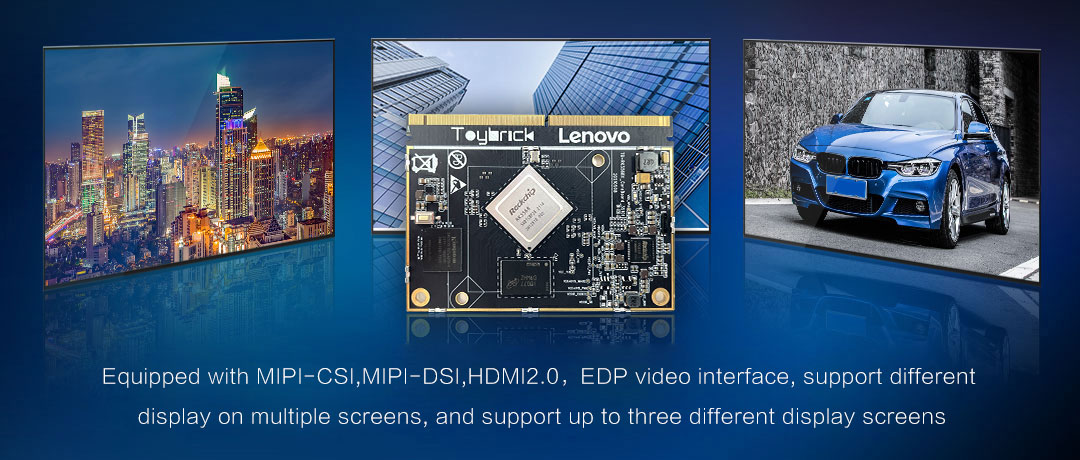

| Interface Type | SODIM 314P（MXM 3.0） |
| Bottom-Board Specification | |
| Dispaly | 1x HDMI2.0(Type-A)interface，Support 4K/60fps output 2x MIPI interface，Support 1920*1080@60fps output 1x eDP interface，Support 2K@60fps output |
|---|---|
| Audio | 1x 8ch I2S/TDM/PDM 1x HDMI audio output 1x Speaker、speaker output 1x headphone output 1x microphone, onboard audio input |

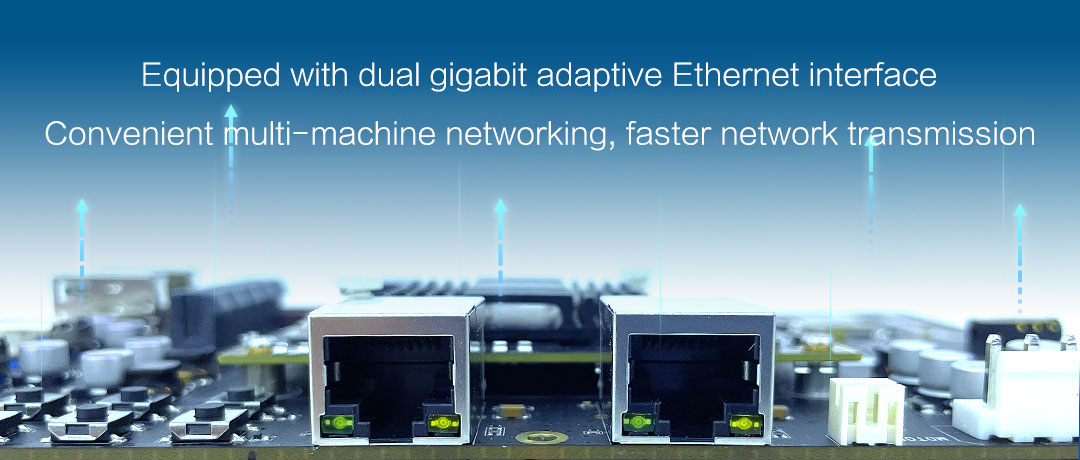

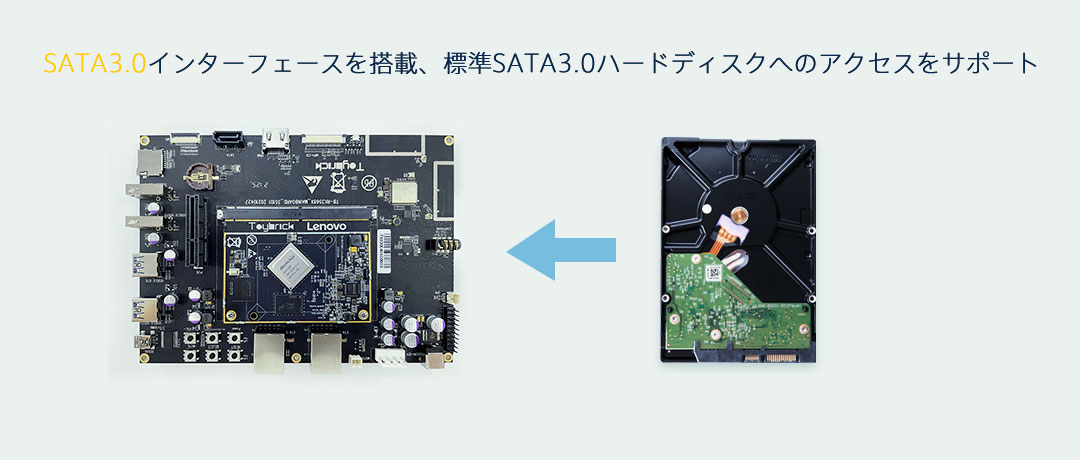

| Ethernet | 2x GMAC(10/100/1000M) |
| Wireless network | SDIO interface，Support WIFI6 5G/2.5G,BT4.2 |
| Camera Interface | MIPI-CSI2, 1x4-lane/2x2-lane@2.5Gbps/lane |
| USB | 2x USB2.0 Host,Type-A 1x USB3.0 Host,Type-A 1x USB3.0 OTG |
| PCIe | 1x 2Lanes PCIe3.0 Connector (RC Mode) |
| SATA | 1x SATA3.0 Connector |
| SDMMC | 1x Micro SD Card3.0 |
| Button | 1x Vol+/Recovery 1x Reset 1x Power 1x Vol- 1x Mute |
| Debug | 1×Debug serial port |
| RTC | 1×RTC |
| IR | 1×IR |
| G-sensor | 1×G-sensor |
| FAN | 1×Fan |
| Expansion interface | 20Pin extended interfaces include:： 2x ADC interface 2x I2C interface 7x GPIO（or 3x gpio + 4x uart signal） 3x VCC power（12V、3.3V、5V） |
| Size | 180mm×130mm |
| PCB specification | 4 layer |
